Main Project Features

➤ Design, Planning & Consultancy of 33/11 kV Substation & 33 kV Transmission Line.

Activities Performed

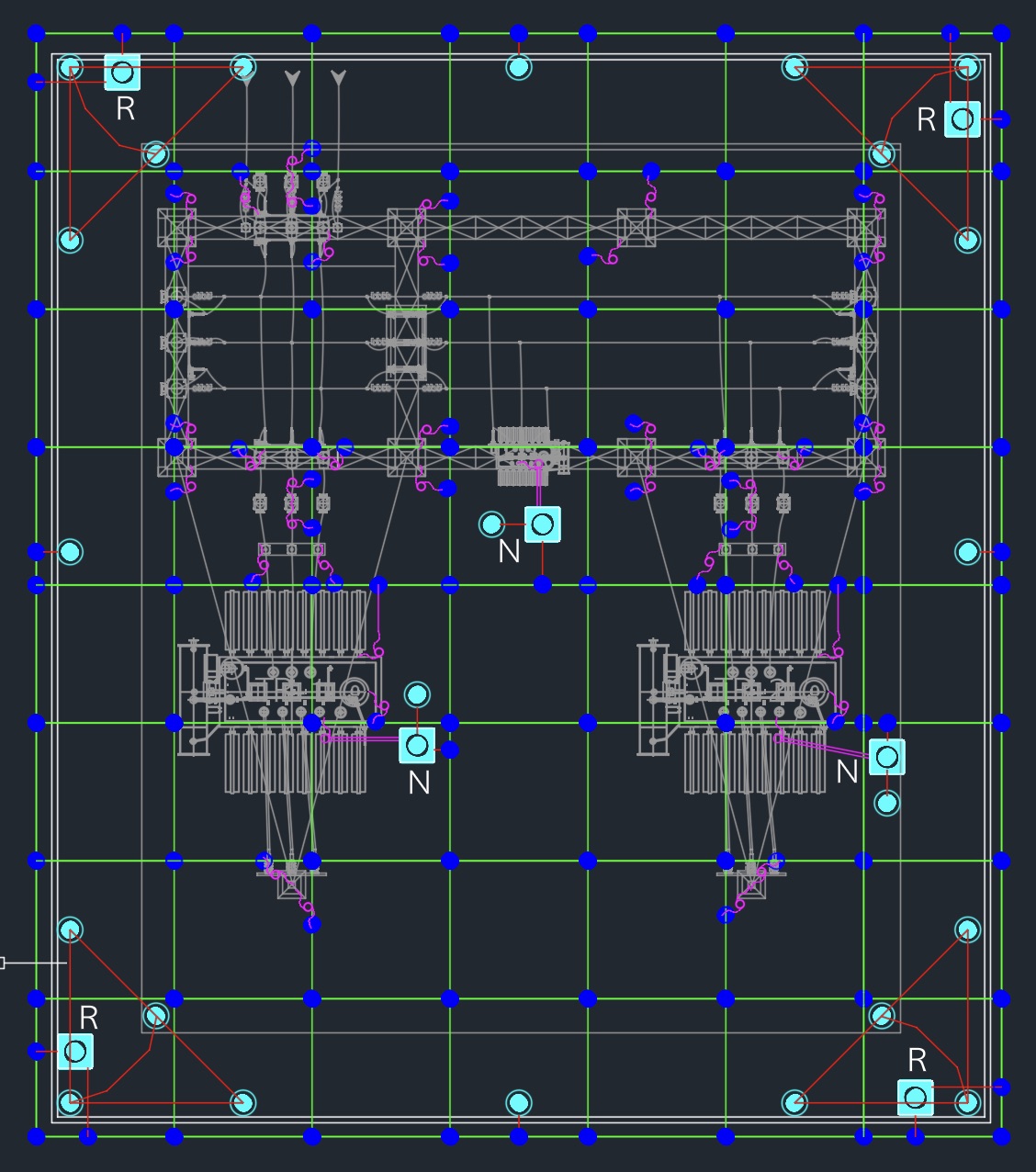

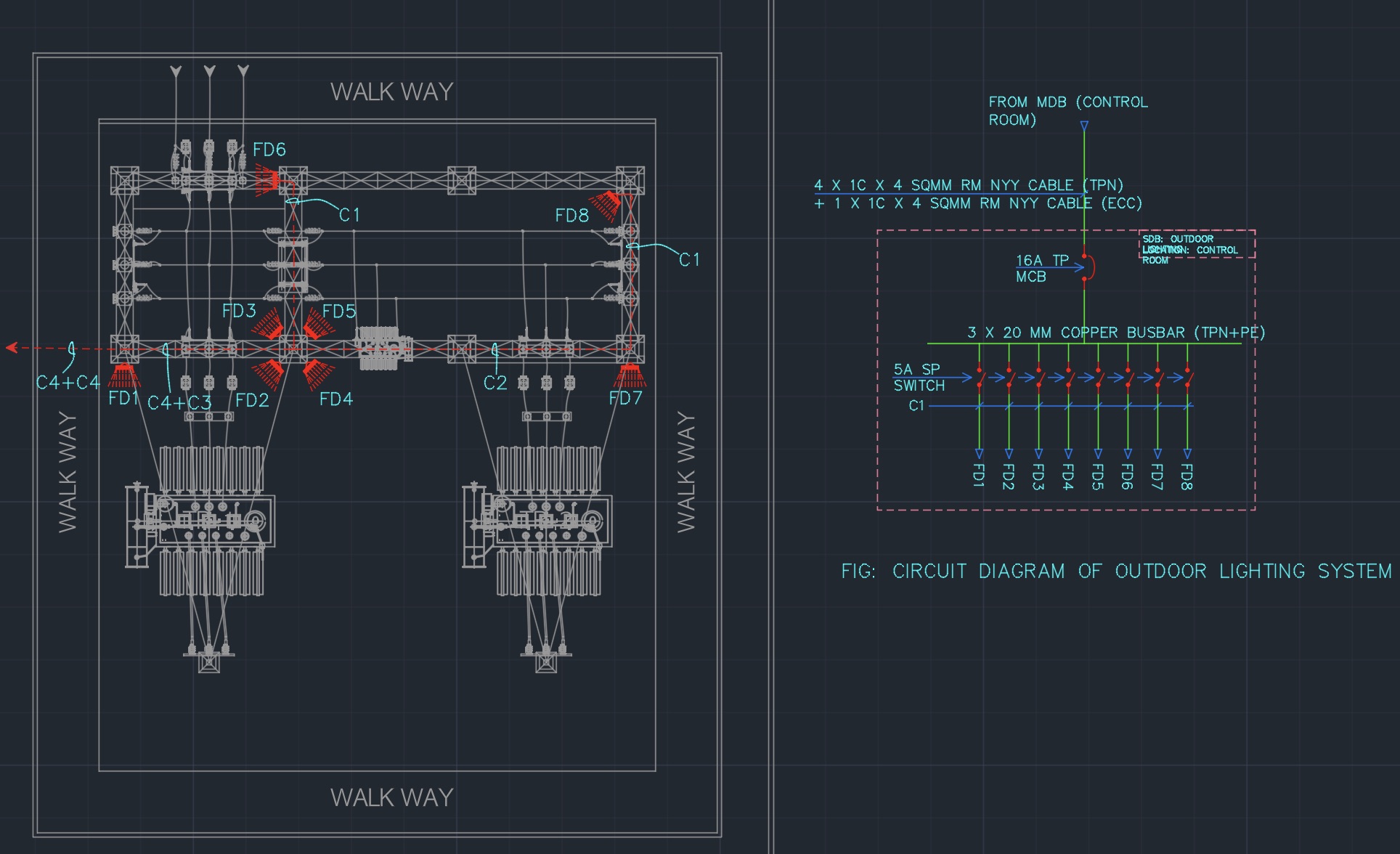

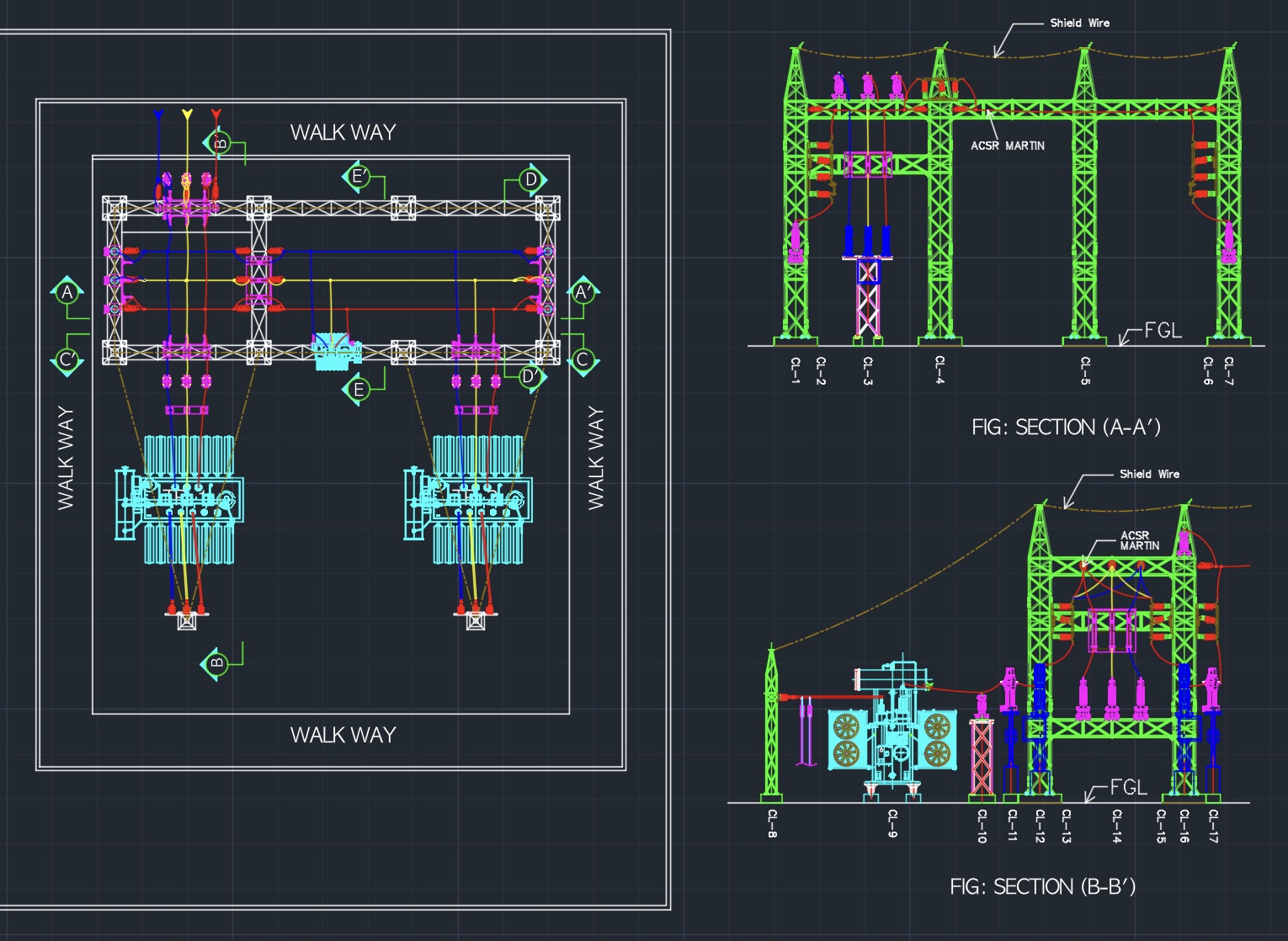

Responsible for design and drawing of 33/11 kV substation Earthing system, Cable raceway system, Switchyard layout, Electrical SLD for MV & LV system, Substation equipment’s footprint drawing, Transformer Oil Containment Pit Design, Protection system design, Substation lighting system, Switchgear & control room design. Sizing Calculation & Preparation of technical data sheet for LA, PT, CT, DS, CB, TR, Main bus (ACSR Conductor/AL or Cu tube), and DC Systems. Preparation of BOQ for Cables, Substation equipment, Gantry Structures, Clamp & Connectors.
